Typical Physical & Chemical Characteristics

Polymer Matrix Structure

Polystyrene crosslinked with DVB

Functional Group

R-(SO₃)^-M⁺

Ionic Form, as shipped

Na⁺

Physical Form And Appearance

Clear Spherical Beads

Whole perfect

92% min.

Screen Size Range
--- U.S. Standard Screen

16-50 mesh, wet

Particle Size Range

+1.2 mm < 5%, -0.3 mm < 1%

Uniformity Coefficient

1.6 max.

Water Retention, Na⁺ form

55-65%

Swelling Na⁺ → H⁺

12% max.

Shipping Weight, Na⁺ form Weight,

760-800 g/l

Total Exchange Capacity, Na⁺ forman

1.40 eq/l min.

Brine pH Range, Na⁺ form

6-9

Color throw, as packaged at RT., max.

20 APHA

Suggested Operating Conditions

Maximum Temperature
Na⁺ form
H⁺ form

120ºC (248ºF) max.
100ºC (212ºF) max.

Minimum Bed Depth

0.6 m (24 inches)

Backwash Expansion

50-75% bed expansion

Regeneration
Regenerant Concentration
Flow Rate
Contact Time

8-20% NaCl or saturated salt water
2 to 7 BV/h (0.25 to 0.90 gpm/cu.ft)
At least 30 Minutes

Displacement Rinse Rate

Same as Regenerant Flow Rate

Displacement Rinse Volume

10-15 gallons/cu.ft

Fast Rinse Rate

8-40 BV/h (1.0-5.0 gpm/cu.ft)

Fast Rinse Volume

3-10 BV (24-45 gal/ft³)

Service Flow Rate

8-40 BV/h (1.0-5.0 gpm/cu.ft)

Hydraulic Properties

Pressure Drop: The graph above shows the expected pressure loss per foot of bed depth as a function of flow rate at various temperatures.

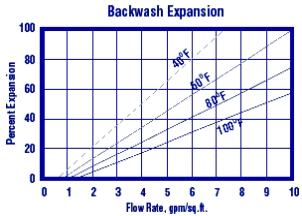

Backwash: After each cycle the resin bed should be backwashed at a rate that expands the bed 50 to 75 percent. This will remove any foreign matter and reclassify the bed. The graph above shows the expansion characteristics of PC001 in Na⁺ form.
